Winkhaus AV4-F 2070/45 92/8 M2 Auto Locking Multipoint Door Lock
VAT included. Shipping calculated at checkout.
Available to order
Secure Shopify checkout
Unsure about the size or mechanism? Share your part number and photos with our team.
0113 548 7908 · Ask about this partProduct details

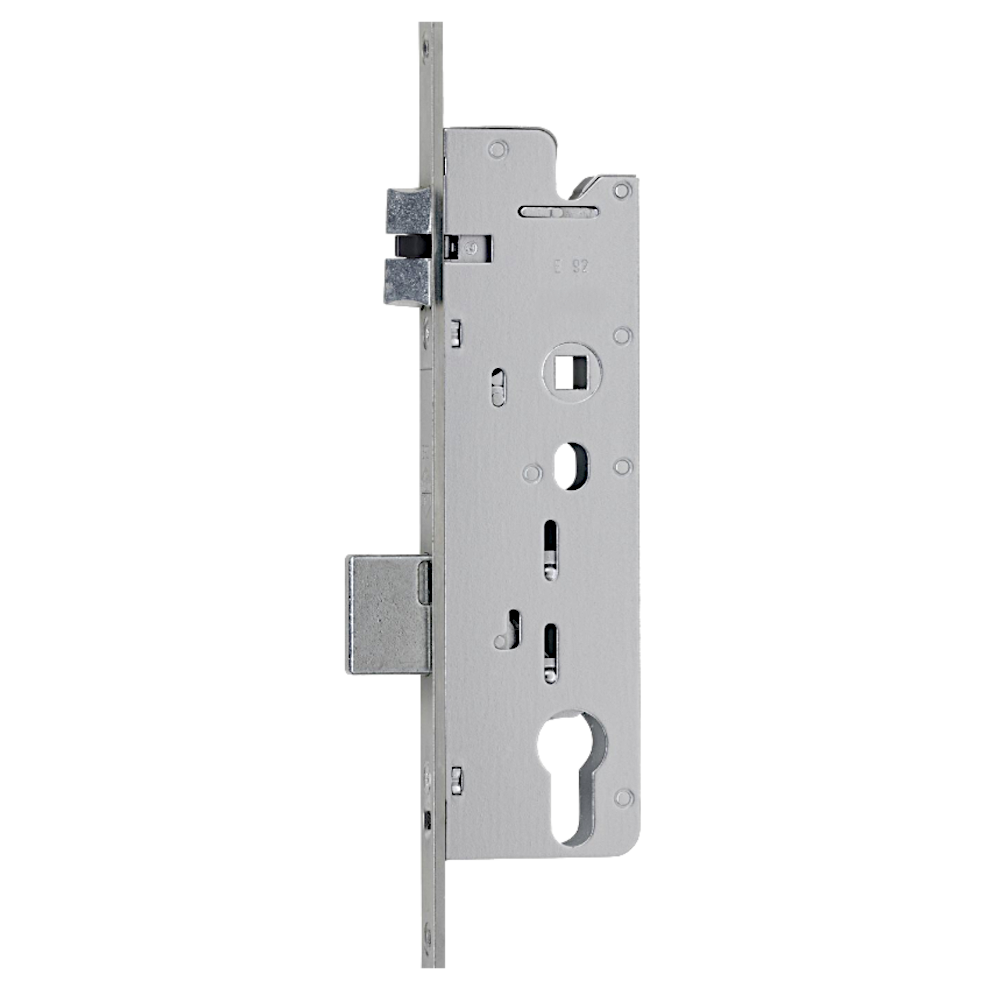

Winkhaus AV4-F 2070/45 92/8 M2 Auto Locking Multipoint Door Lock
The Winkhaus AV4-F M2 delivers advanced auto-locking security with the AV4 hook geometry — designed for enhanced resistance against forced entry attacks. Auto-locking on door closure ensures the property is always secured without relying on the occupant to engage the deadbolt. With a 45mm backset and 92/8mm PZ centres, this is a versatile replacement gearbox for the majority of standard uPVC and composite door frames.
Key Features
- Auto-locking on door closure
- 45mm backset, 92/8mm PZ centres
- 2070mm gearbox

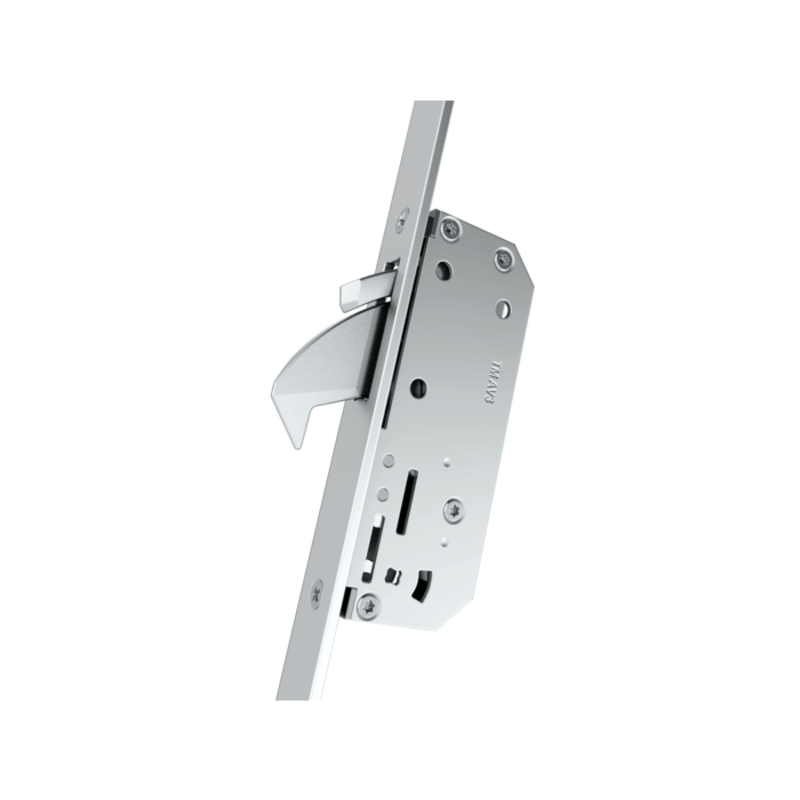

- Advanced AV4 hook geometry for improved attack resistance
- Winkhaus M2 mechanism
- PAS24 compatible
- For uPVC and composite doors
Specifications
| Brand | Winkhaus |
| Model | AV4-F M2 |
| SKU | 5097231 |
| Backset | 45mm |
| Centres | 92/8mm |
| Gearbox Length | 2070mm |
| Operation | Auto-locking |
| Faceplate | 20mm Radius |
| Compatibility | uPVC, Composite |
Product reference
- Brand
- Winkhaus
- Type
- Door Hardware
- SKU
- 5097231
Check before ordering
Use your existing part as the reference and confirm:
- Brand, model and any stamped part number.
- Overall dimensions and fixing positions.
- Mechanism, operation and left/right handing where relevant.
- The selected size, finish and included components.
If any detail is unclear, ask our team before ordering.
