ERA Single Point Door Lock Gearbox | 6045 Deadbolt | 45mm Backset | 20mm Face Bar | Euro Cylinder
VAT included. Shipping calculated at checkout.
Available to order
Secure Shopify checkout
Unsure about the size or mechanism? Share your part number and photos with our team.
0113 548 7908 · Ask about this partProduct details

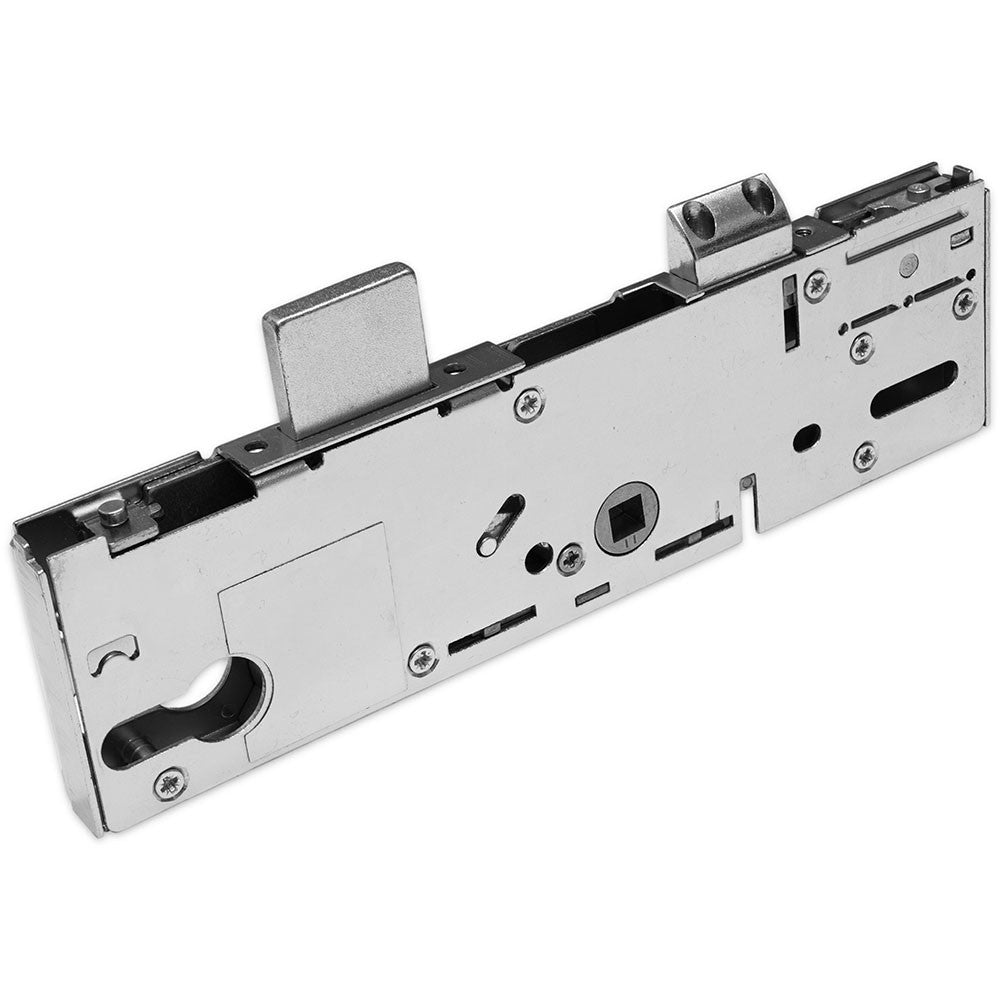

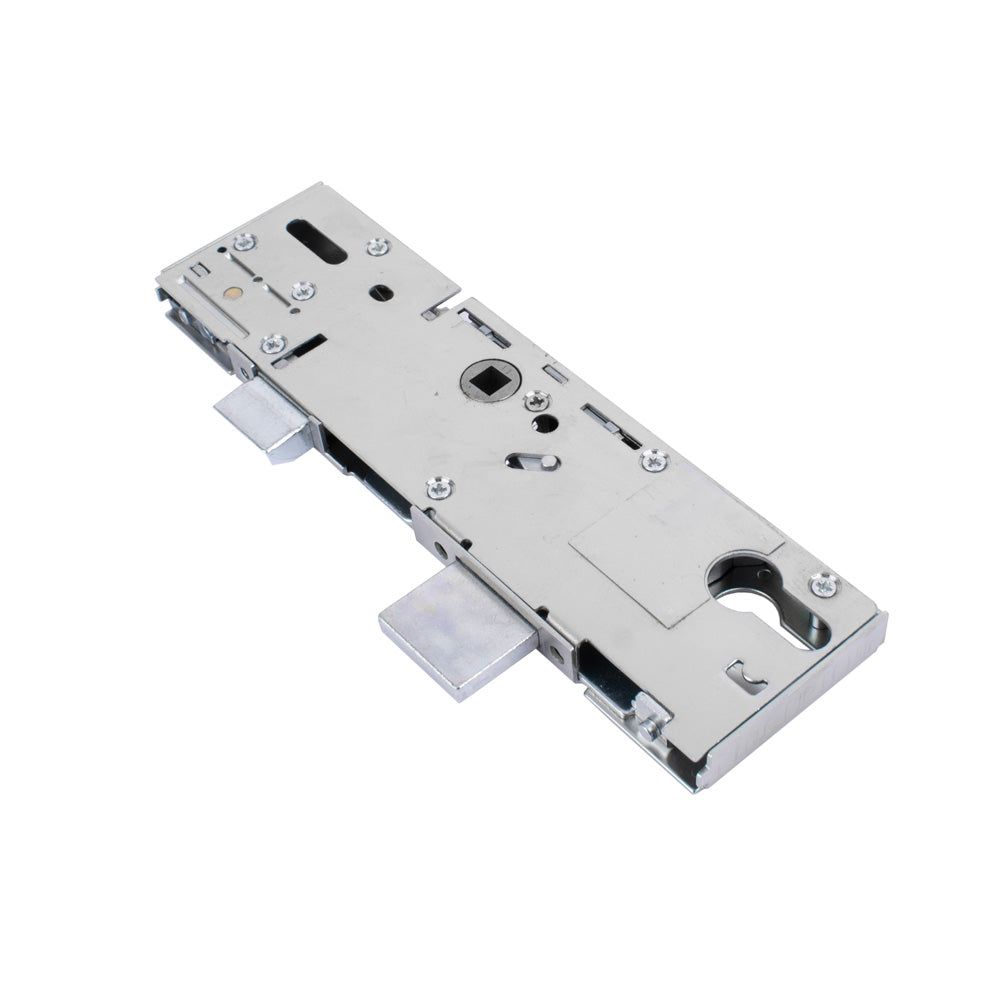

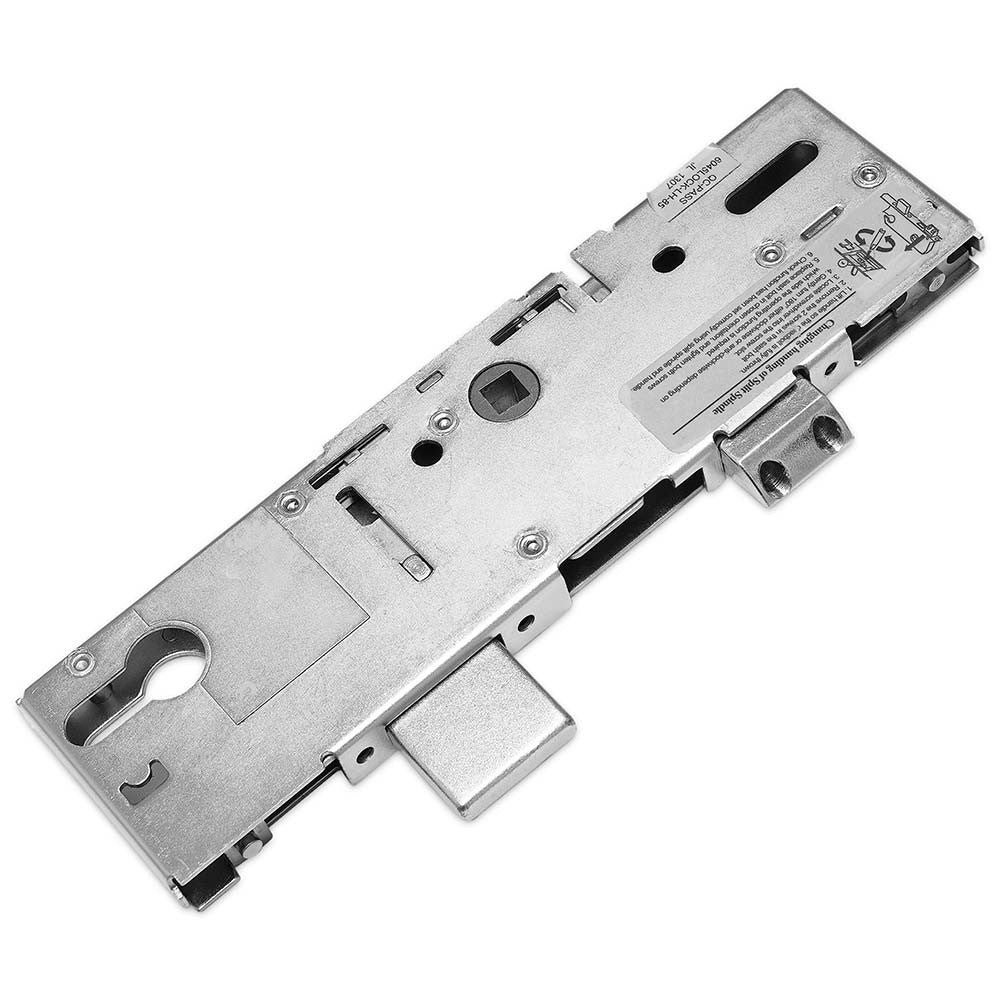

ERA Single Point Door Lock Gearbox | 6045 Deadbolt | 45mm Backset | 20mm Face Bar | Euro Cylinder
Single Point ERA multi-point lock gearbox, available as a euro cylinder in deadbolt or hook bolt options and supplied as a gearbox or extension. This variant is the 6045 deadbolt gearbox with a 45mm backset on a 20mm face bar, providing a reliable single locking point for multi-point door applications.
Key Features
- Euro cylinder operation, available in deadbolt or hook bolt options
- Supplied as gearbox or extension
- Deadbolt gearbox configuration
- 45mm backset on a 20mm face bar
- Meets BS EN 1670 Grade 4 corrosion resistance (240 hours)
Specifications
| Specification | Detail |
|---|---|
| Brand | ERA |
| Model | Single Point Door Lock (6045) |
| SKU / Product Code | 6045-20-GEARBOX |
| Lock Variant | Deadbolt Gearbox Only |
| Backset | 45mm |
| Face Bar | 20mm |
| Cylinder | Euro profile |
| Barcode | 5011988066747 |
| Weight | 0.985kg |
| Measurements | 220mm x 20mm x 63mm |
| Corrosion | BS EN 1670 Grade 4 (240 hours) |
Product reference
- Brand
- ERA
- Type
- Door Hardware
- SKU
- 6045-20-GEARBOX
Check before ordering
Use your existing part as the reference and confirm:
- Brand, model and any stamped part number.
- Overall dimensions and fixing positions.
- Mechanism, operation and left/right handing where relevant.
- The selected size, finish and included components.
If any detail is unclear, ask our team before ordering.
