Winkhaus

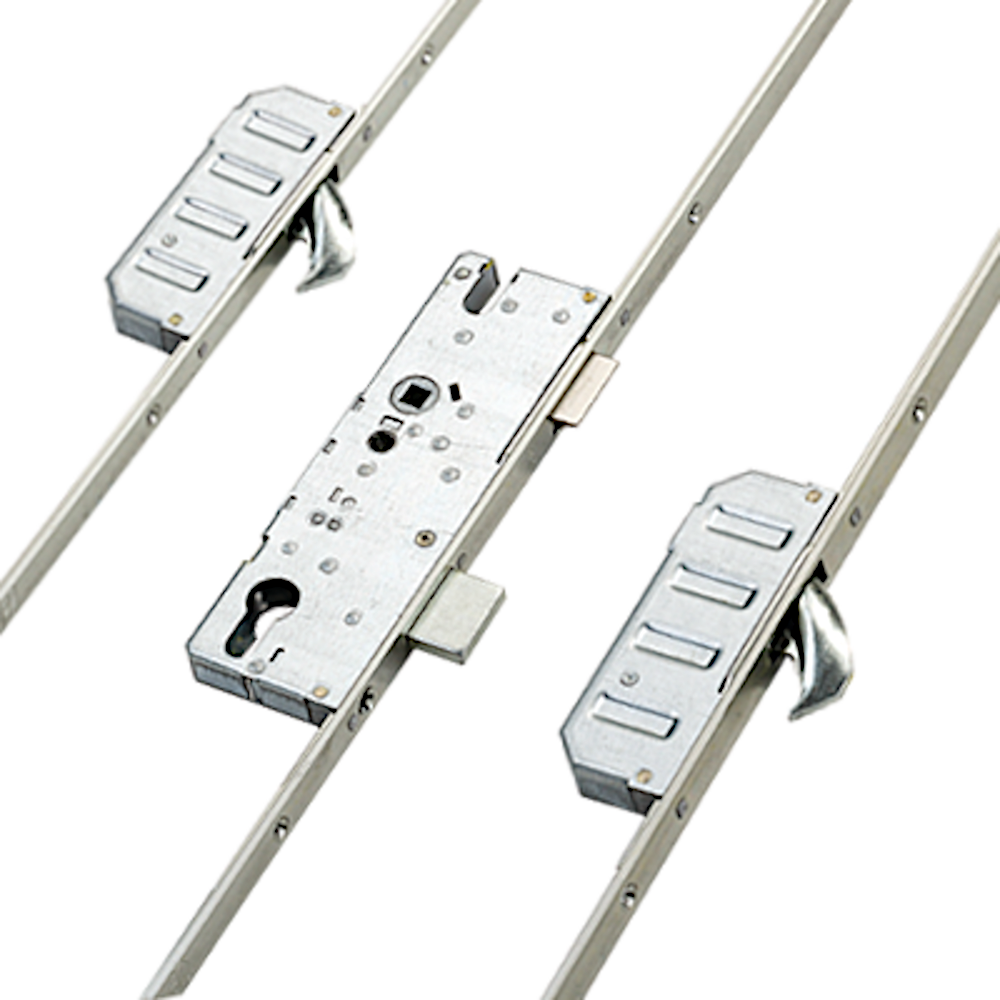

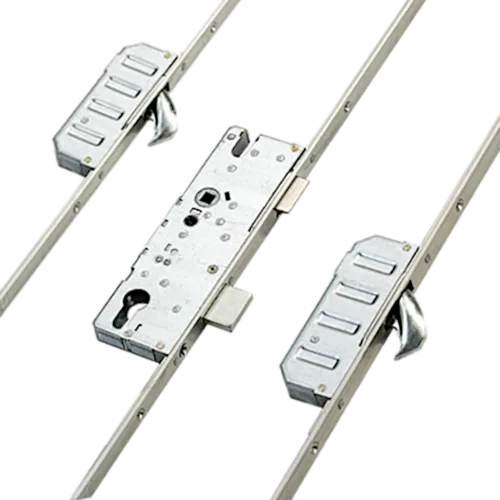

Winkhaus STV-TRULOCK LL 2070/45 M2 Left Hand Multipoint Door Lock
VAT included. Shipping calculated at checkout.
Available to order
Secure Shopify checkout
Unsure about the size or mechanism? Share your part number and photos with our team.
0113 548 7908 · Ask about this partProduct details
Genuine Winkhaus STV Trulock LL multipoint door lock for left-hand uPVC door applications. This handed 45/92 lock combines a central latch and deadbolt with two remote hook locking points and is intended as a replacement where the existing Winkhaus specification matches.
Key Specifications
- Winkhaus material number: 4929323
- Handing: Left Hand (LH)
- 45 mm backset
- 92 mm PZ centres
- 2 hook locking points plus central latch and deadbolt
- Single spindle operation
- 20 mm radius-ended faceplate
- Approx. 1770 mm overall strip length
- Centre gearbox approximately 63 mm wide × 185 mm high
Fitment note: Multipoint locks are specification-specific. Before ordering, compare the material number, handing, backset, PZ centres, faceplate and locking-point positions with the existing lock.
Product reference
- Brand
- Winkhaus
- Type
- Door Hardware
- SKU
- 4929323
Check before ordering
Use your existing part as the reference and confirm:
- Brand, model and any stamped part number.
- Overall dimensions and fixing positions.
- Mechanism, operation and left/right handing where relevant.
- The selected size, finish and included components.
If any detail is unclear, ask our team before ordering.
Delivery & returns
Available delivery options and charges are shown at checkout. Contact us to check availability or discuss a specific requirement before placing your order.
